NEHRL11 Series 15 KVA / 15 KW True Online COTS UPS
- Compact 19″ Rack Mount Chassis
- Mounting Feet for Freestanding Tower Configuration Optional
- Lightweight Design
- Power Factor Corrected
- 5.5″ Color LCD Touch Screen Interface
- Configurable for Three-Phase Input and Output or Three-Phase Input / Single-Phase Output
- Double-Conversion UPS Systems
- Rack-Mount, Double-Conversion UPS Systems
- True Online UPS Technology
- Description
- Specifications
- Data Sheets
Description
Nova Electric’s NEHRL11 Series double conversion True Online UPS is fully controlled by advanced DSP technology. These units pack a full 15 KVA / 15 KW worth of power into a lightweight, very compact form factor. The chassis can be mounted in a standard 19″ EIA rack, or installed as a tower with the included mounting feet. The design can be configured for three-phase input and output, or three-phase input / single-phase output. Advanced power factor correction is included.
Typical Applications Include:
- Internet Data Centers
- Network Servers and Work Stations
- Control Systems
- Communication Systems
- Office Applications
| MODEL (TYPICAL) | NEHRL11-15K3/6-120/208-120/208 |
|||
|---|---|---|---|---|
| CAPACITY | 15 kVA / 15 kW |
|||
| MAIN | ||||
| INPUT | 3P + N + PE |
|||
| NOMINAL VOLTAGE | 200 / 208 / 220 VAC (Line to Line) |
|||
| NOMINAL FREQUENCY | 50 / 60 Hz |
|||
| INPUT VOLTAGE RANGE | 166 ~ 261 VAC (Line to Line), full load; 125 V ~ 166 VAC (Line to Line), derate from 75% to 100% load |
|||
| INPUT FREQUENCY RANGE | 40 Hz ~ 70 Hz |
|||
| INPUT RF | > 0.99 |
|||
| INPUT THDi | < 3% (100% Linear Load) |
|||
| BYPASS | ||||
| NOMINAL VOLTAGE | 200 / 208 / 220 VAC (Line to Line) |
|||
| NOMINAL FREQUENCY | 50 / 60 Hz |
|||
| INPUT VOLTAGE RANGE | Settable, -40% ~ +25% |
|||
| BYPASS FREQUENCY RANGE | Settable, ±1 Hz, ±3 Hz, ±5 Hz |
|||
| BYPASS OVERLOAD | 110%, long time; 125%, 5min; 150%, 1min; >150%, 1s |
|||
| OUTPUT | ||||
| NOMINAL VOLTAGE | 200 / 208 / 220 VAC (Line to Line) |
|||
| NOMINAL FREQUENCY | 50 / 60 Hz |
|||
| OUTPUT PF | 1 | |||
| OUTPUT THD | <1%, Linear Load; <6%, Non-linear load (IEC/EN62040-3) |
|||
| INVERTER OVERLOAD | 110 % for 1 hour; 125% for 10 min; 150% for 1min; >150% for 200 ms |
|||
| BATTERY |
||||
| BATTERY NUMBER | ± 120 VDC |
|||
| CHARGING ACCURACY | 1% |
|||
| CHARGING CAPACITY | up to 20% *Output Power |
|||
| BATTERY COLD START | Yes | |||
| RUN TIME ON BATTERY | 4 Minutes at 15 KW / 12.5 minutes at 7.5 kW load (25°C) | |||
| EFFICIENCY | ||||
| AC MODE | > 96.0% |
|||
| BATTERY MODE | >95.5% |
|||
| SYSTEM | ||||
| DISPLAY | LED + LCD Touch Screen |
|||
| INTERFACE | RS232, RS485, Programmable Dry Contact |
|||
| OPTION | SNMP Card, Parallel, SPD |
|||
| ENVIRONMENT | ||||
| OPERATION TEMPERATURE | 0 ~ 40°C |
|||
| STORAGE TEMPERATURE | -40 ~ 70°C |
|||
| RELATIVE HUMIDITY | 0 ~ 95% Non Condensing |
|||
| NOISE (1 METER) | 65 dB @100% load, 62 dB @ 45% load |
|||
| PHYSICAL DATA |
||||
| DIMENSIONS W * D * H [mm] | UPS: 19.10” x 34.85” x 5.12” [485 x 885 x 130] / BATTERY: 19” x 32.88” x 6.96” [48.26 x 83.51 x 17.68] |
|||
| WEIGHT [kg] | UPS: ~ 55 lbs [25 kg] / BATTERY: ~ 250 lbs [113.4 kg] |
|||

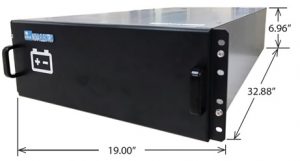

BATTERY DRAWER
The NEHRL-BP-240 matching Battery Pack contains 4 front
panel pull out trays which each contain 10 high rate 9AH VRLA
Batteries.
The overall battery assembly contains two rear mounted circuit
breakers, and two rear mounted connectors to connect to the
UPS.
